Steam Train wooden constructor locomotive file dxf, svg, ai and cdr 3d puzzle file for laser cut
$11.59
This is a digital product! Not a physical item!
This is a layout for the manufacture of a finished product using a CO2 laser cut.
After payment, you will automatically receive the files.

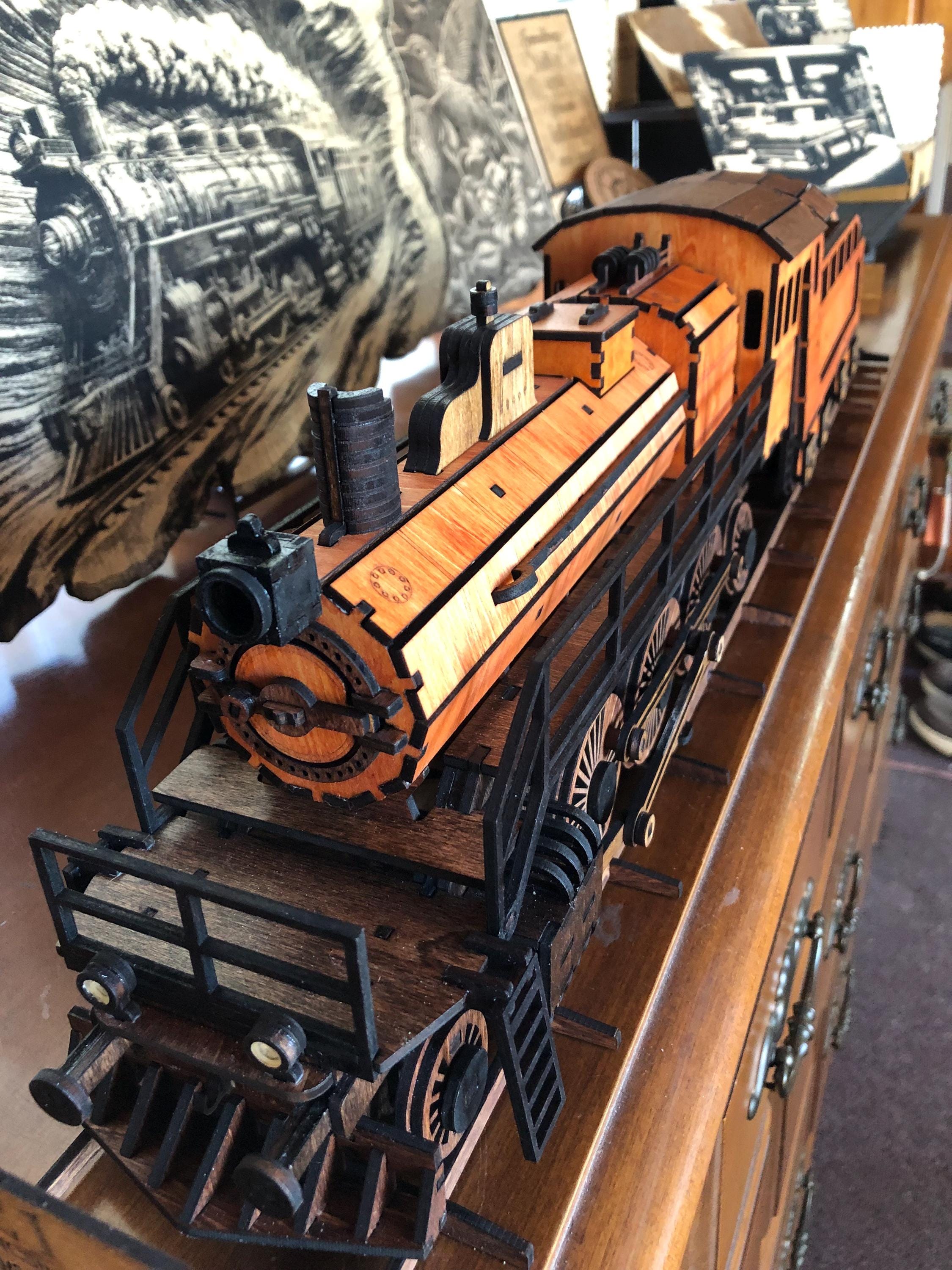

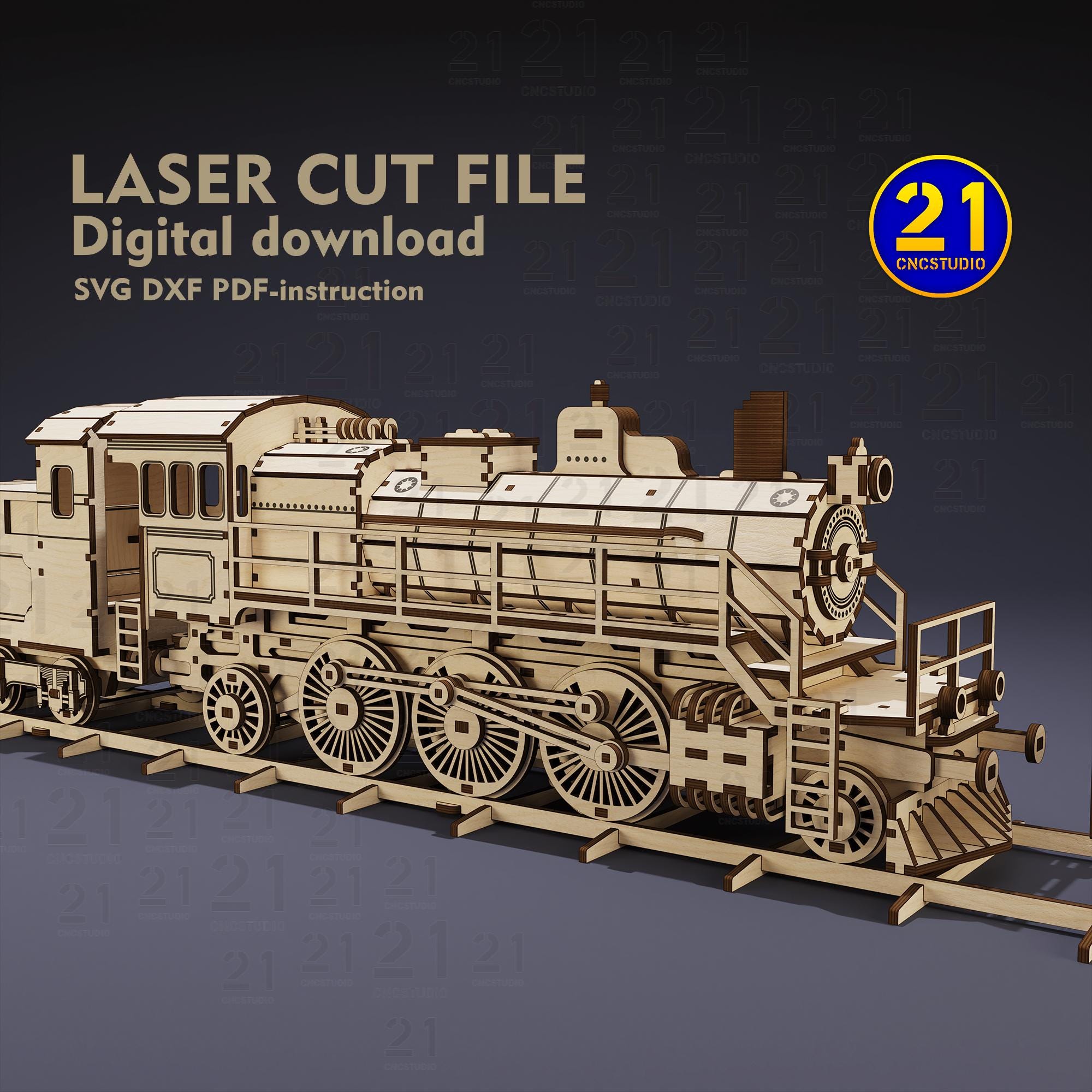

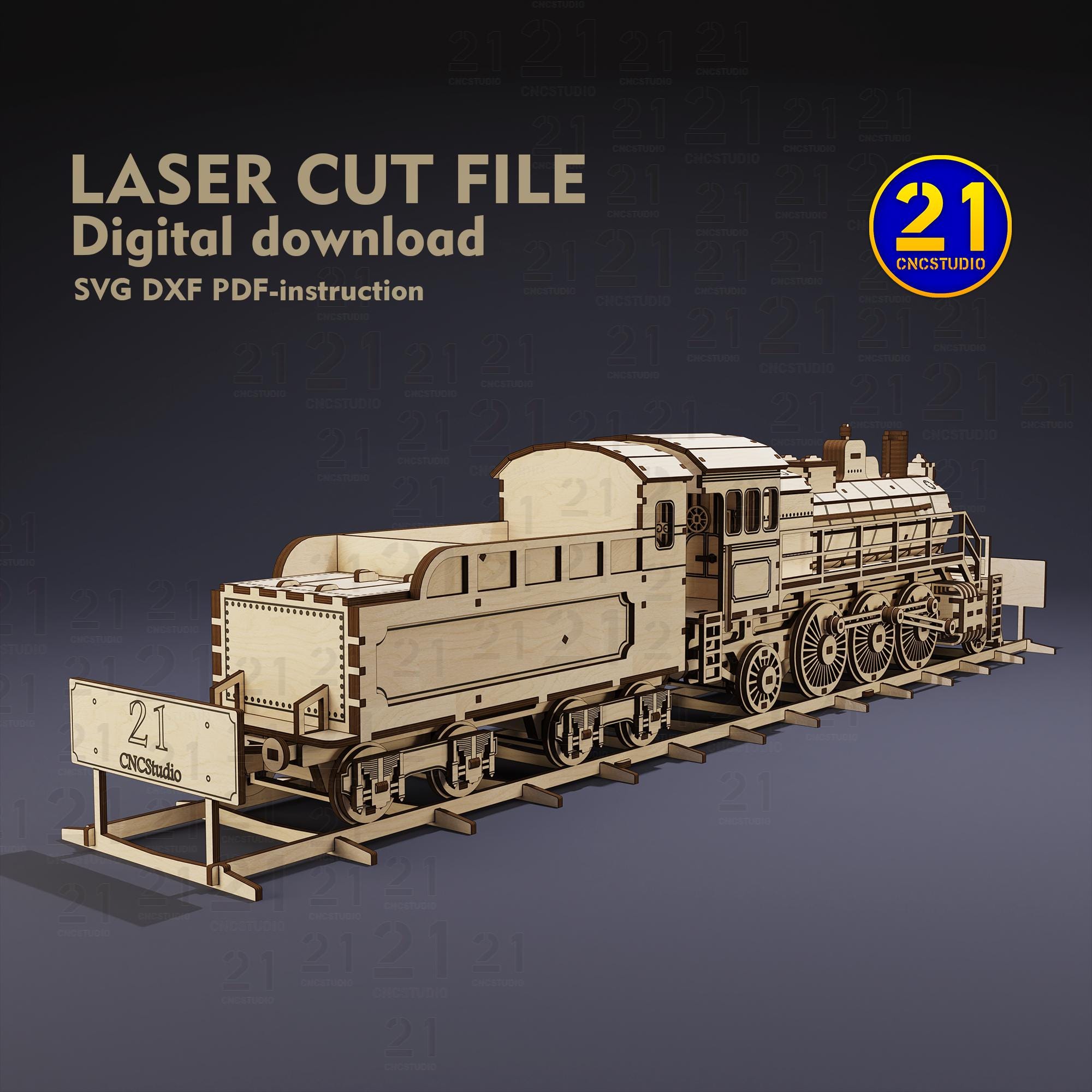

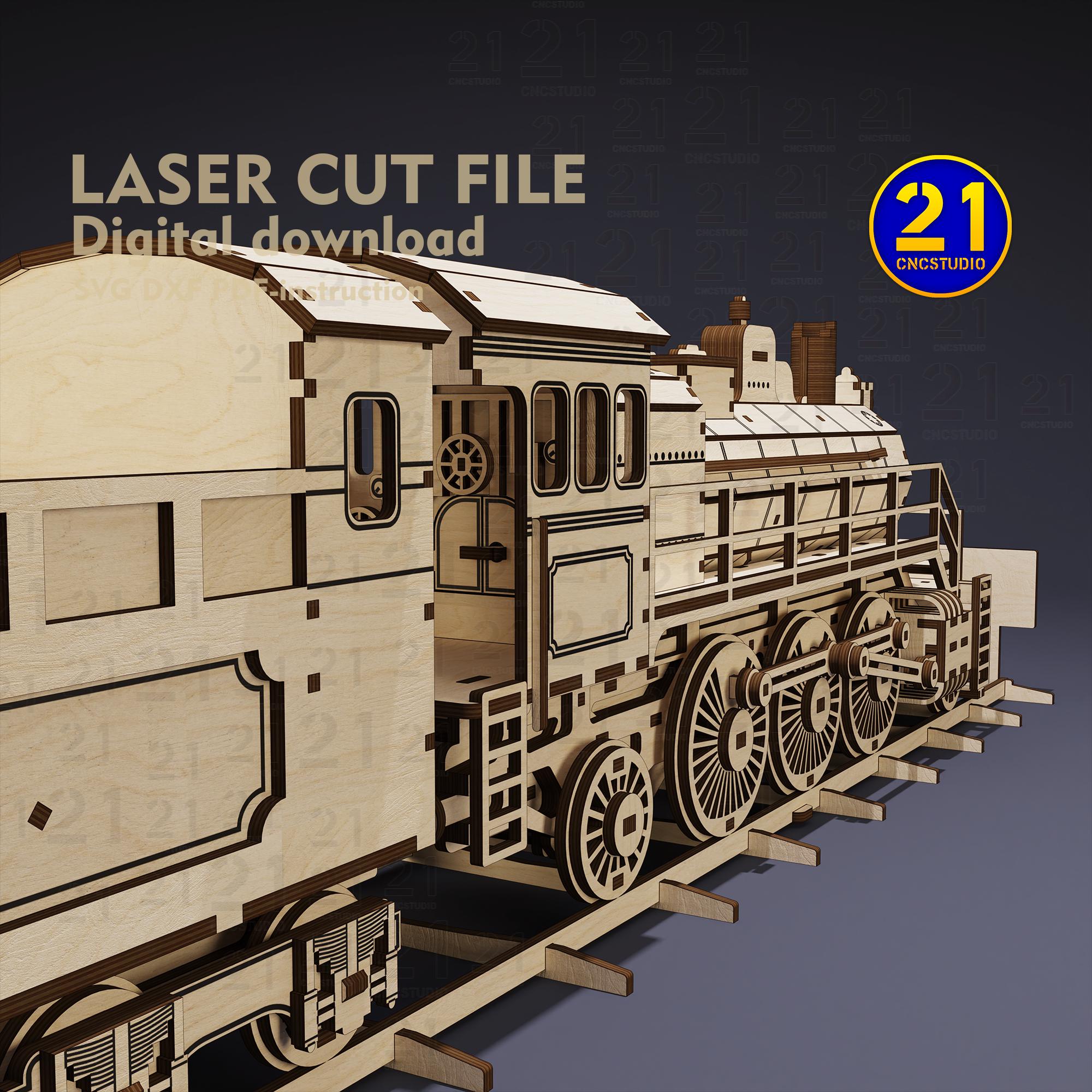

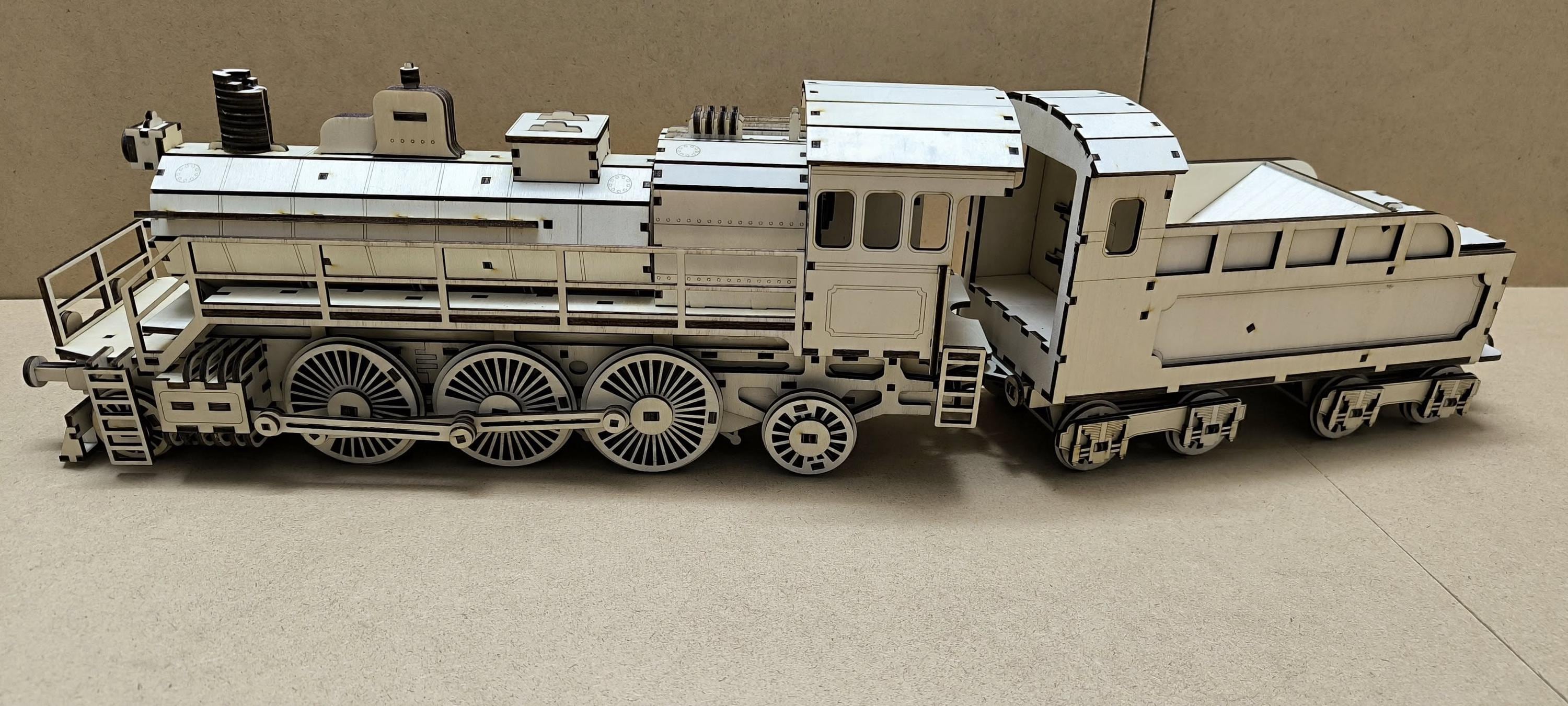

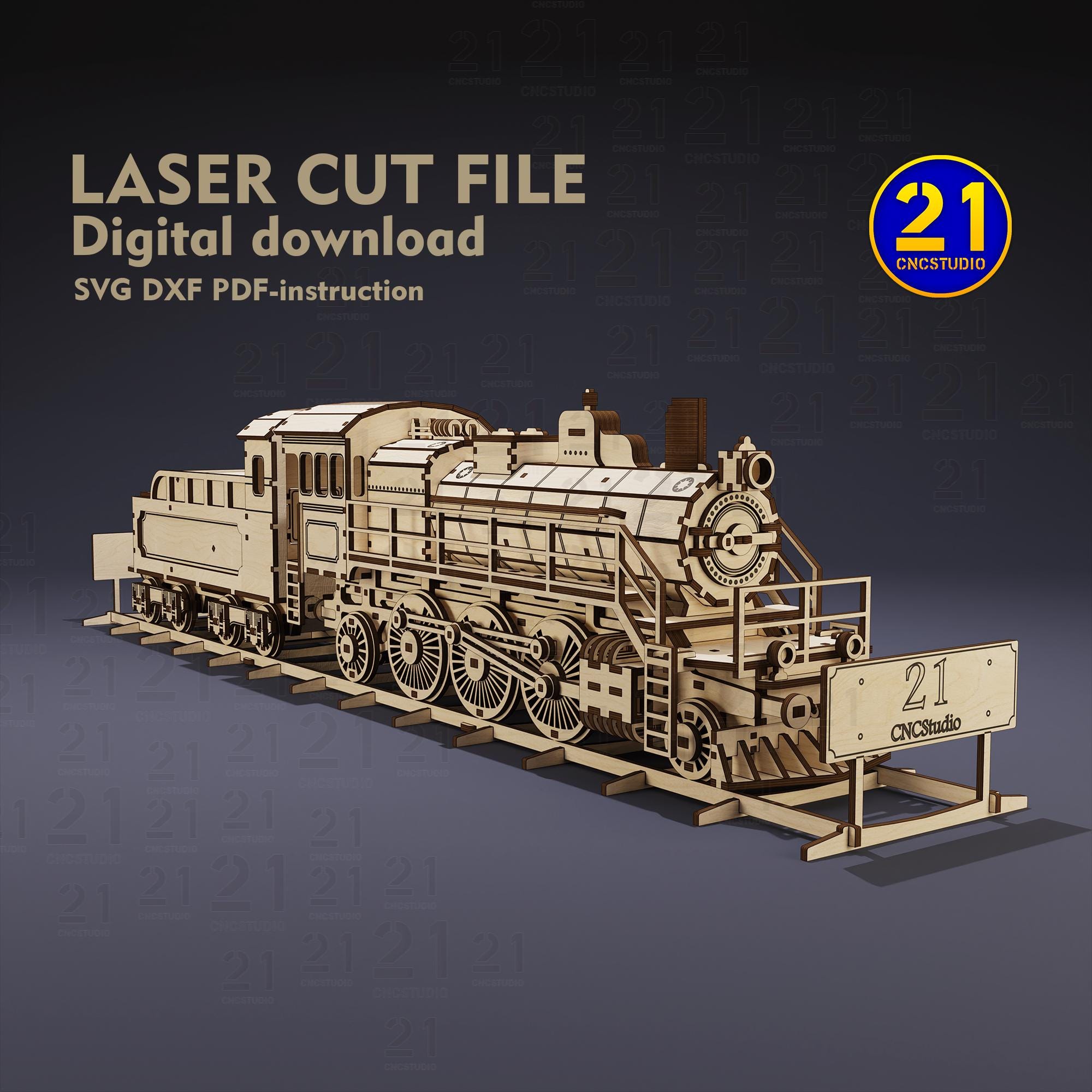

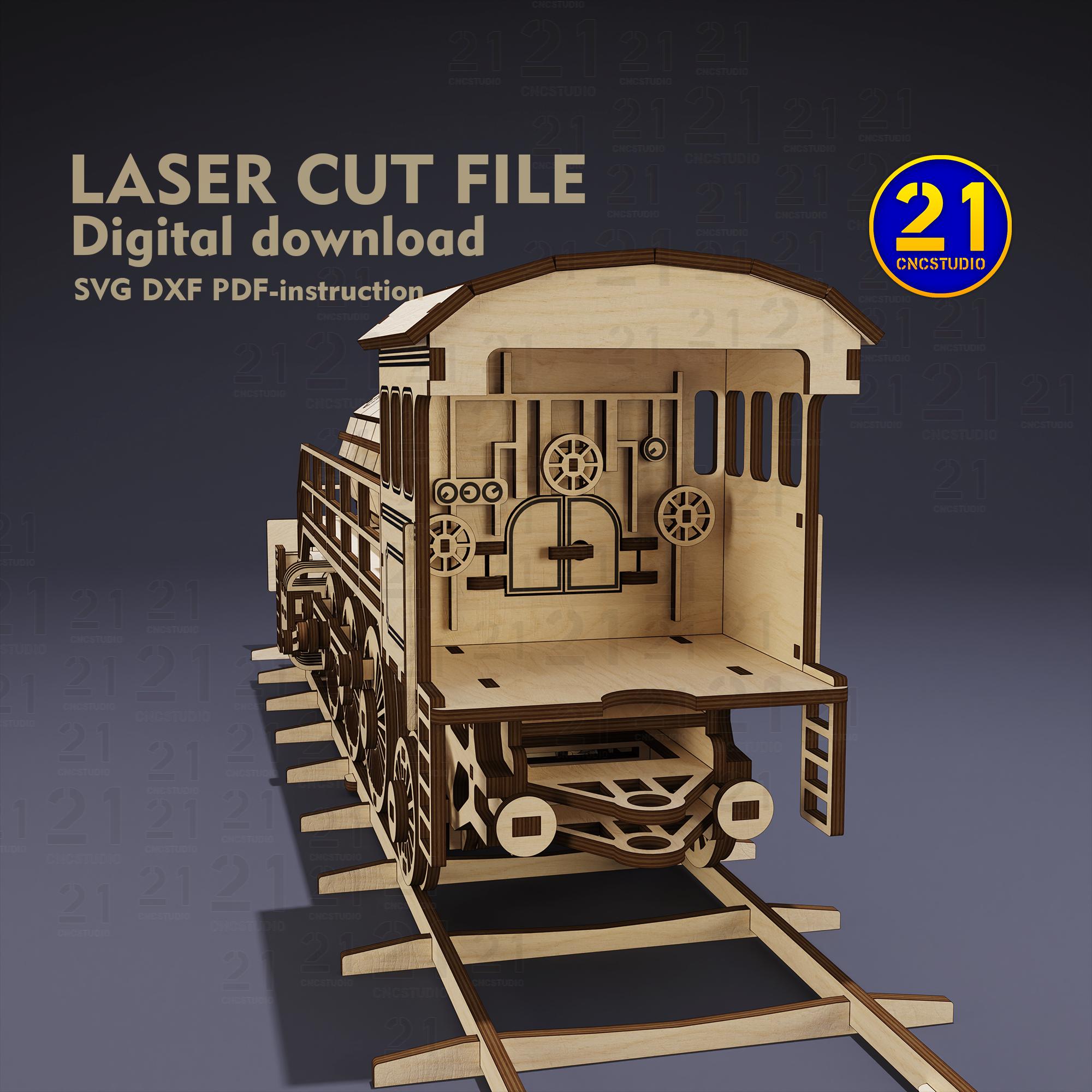

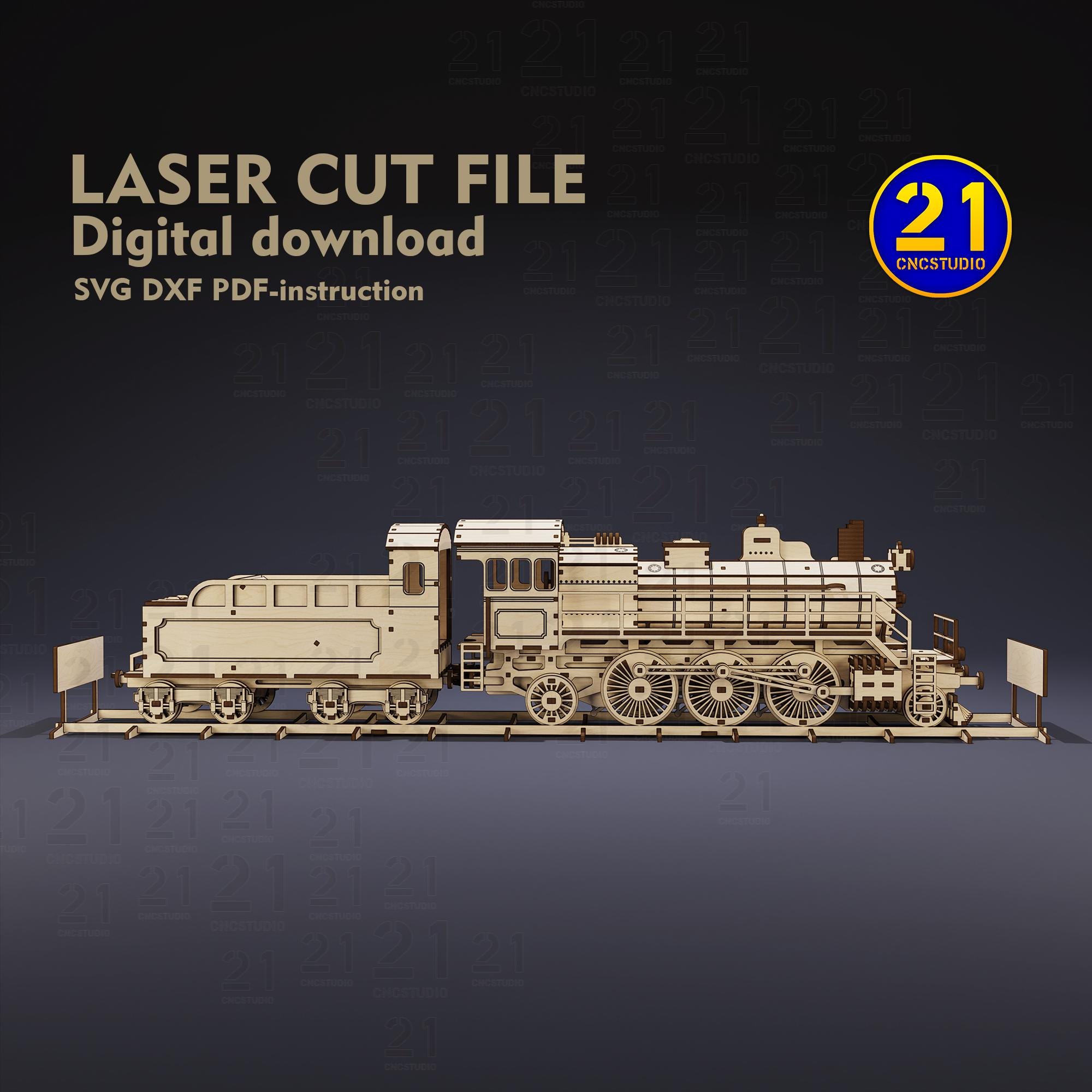

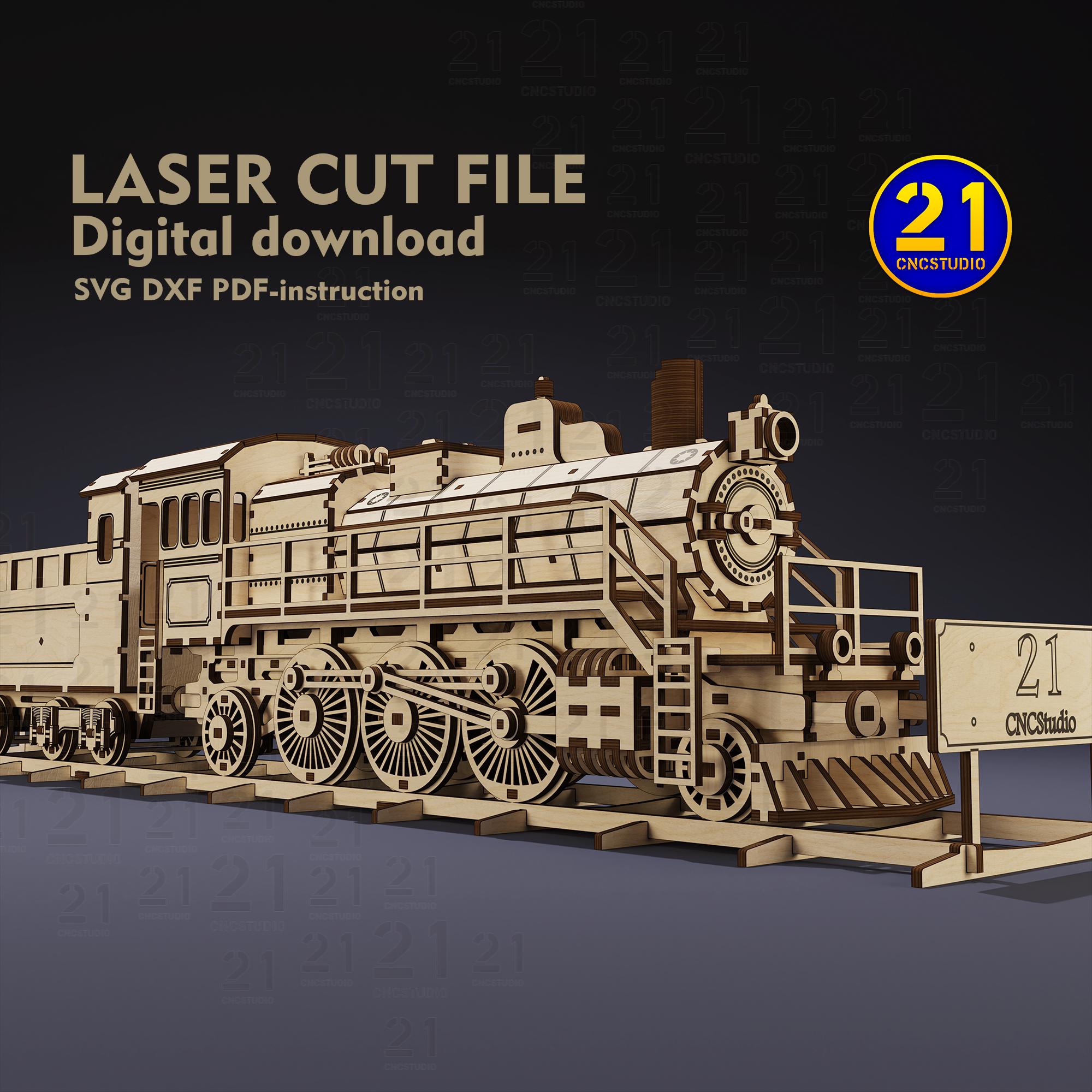

The Steam Train Laser Cut Model is a mechanical engineering kit for laser cutting, that allows users to create a 3D replica of a classic steam locomotive. The model is designed to be laser cut from high quality materials such as plywood, acrylic or MDF and can be assembled without the use of additional tools.
The kit includes all necessary components, drawing in dxf and svg format (two options for 3mm and 1/8 inch thickness) and detailed instructions to help users assemble a fully functional locomotive model. The set also includes moving parts such as wheels and pistons.
This model is ideal for hobbyists, train enthusiasts and anyone looking for a challenging yet rewarding building experience. The Steam Train laser cutting model is not only a fun and exciting way to spend time, but also serves as a teaching tool that teaches the basics of mechanical engineering.
All in all, the Steam Train laser cut model is a quality and enjoyable way to experience the marvel of engineering and the beauty of classic steam locomotives.
For cutting you will need 13 sheets of 280 * 280mm in size with a material thickness of 3mm. Also, the scale of the drawing can be adjusted to any thickness of the material, you can do it yourself or contact me, I will be happy to help you.
Model size
Train L 389mm, W 156mm, H 112mm

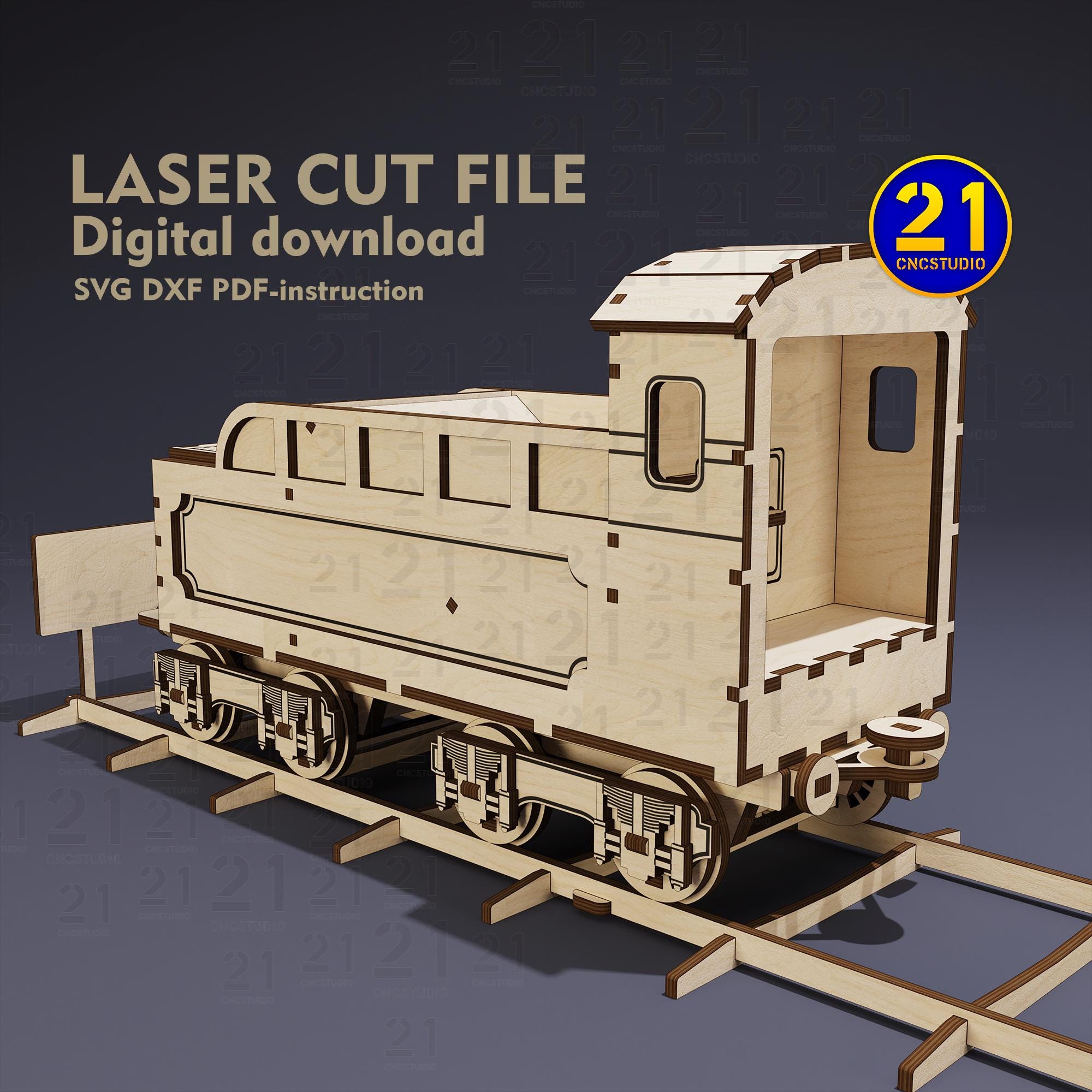

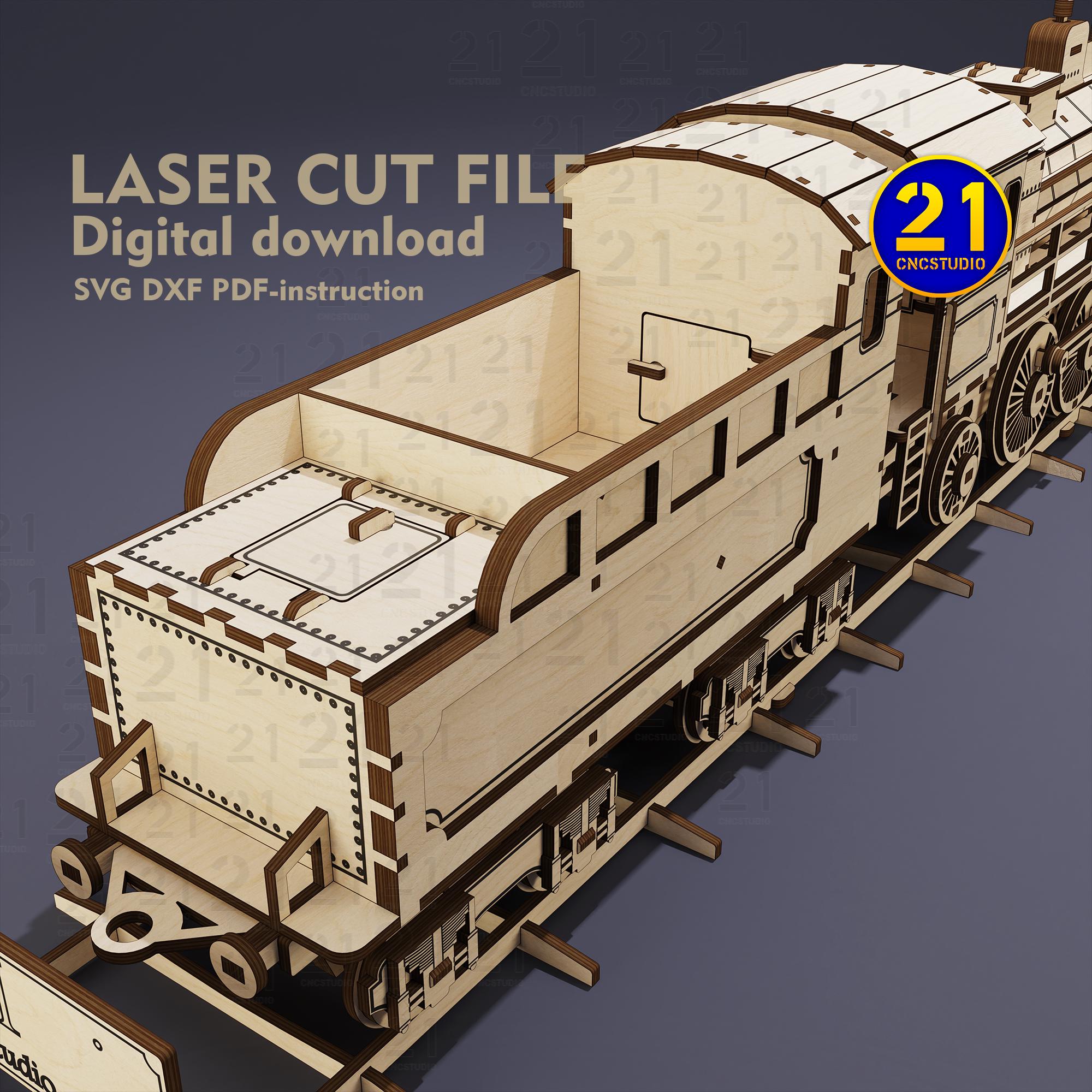

Railway carriage L 276mm, W 147mm, H 100mm
