Jaeger Robot - Laser Cut Model

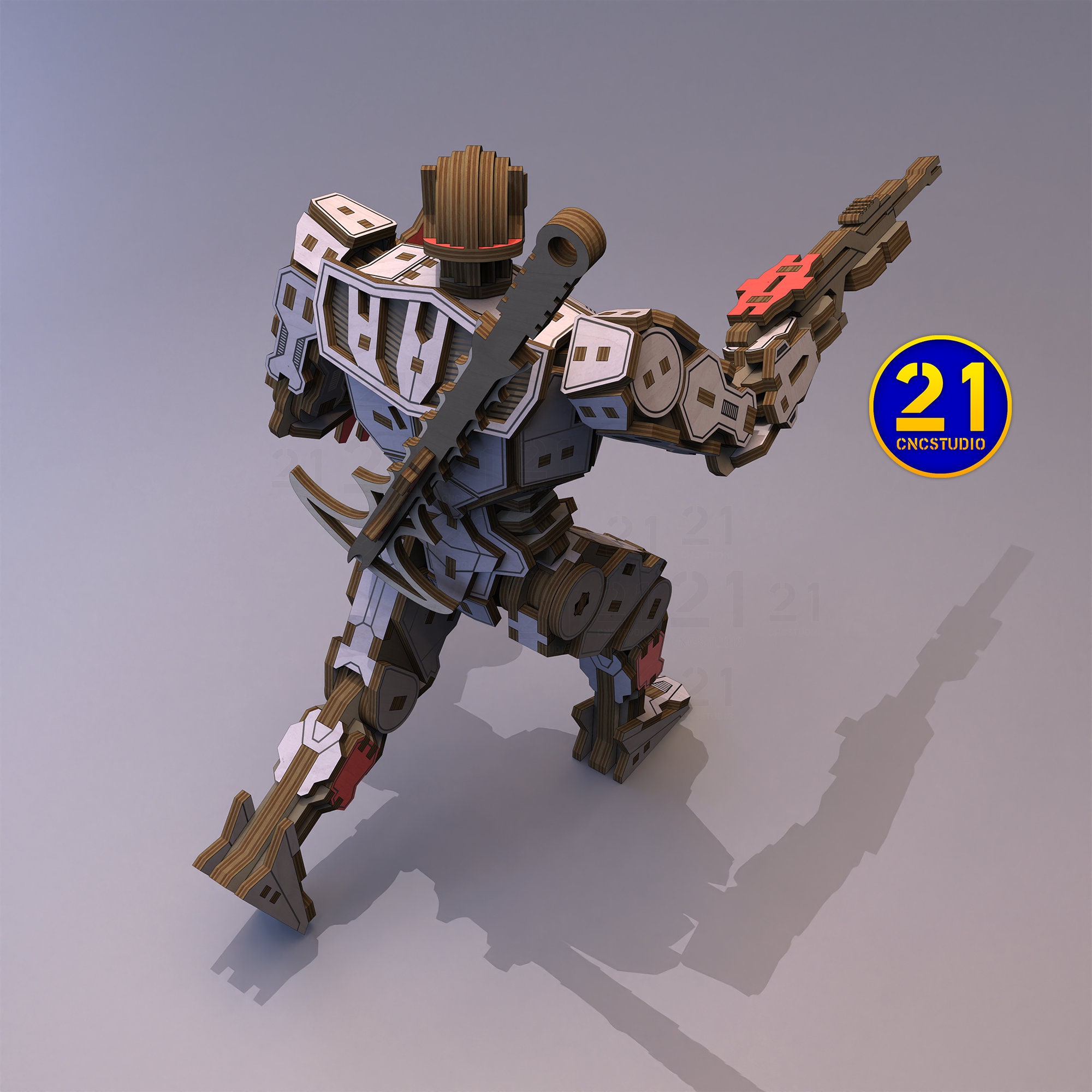

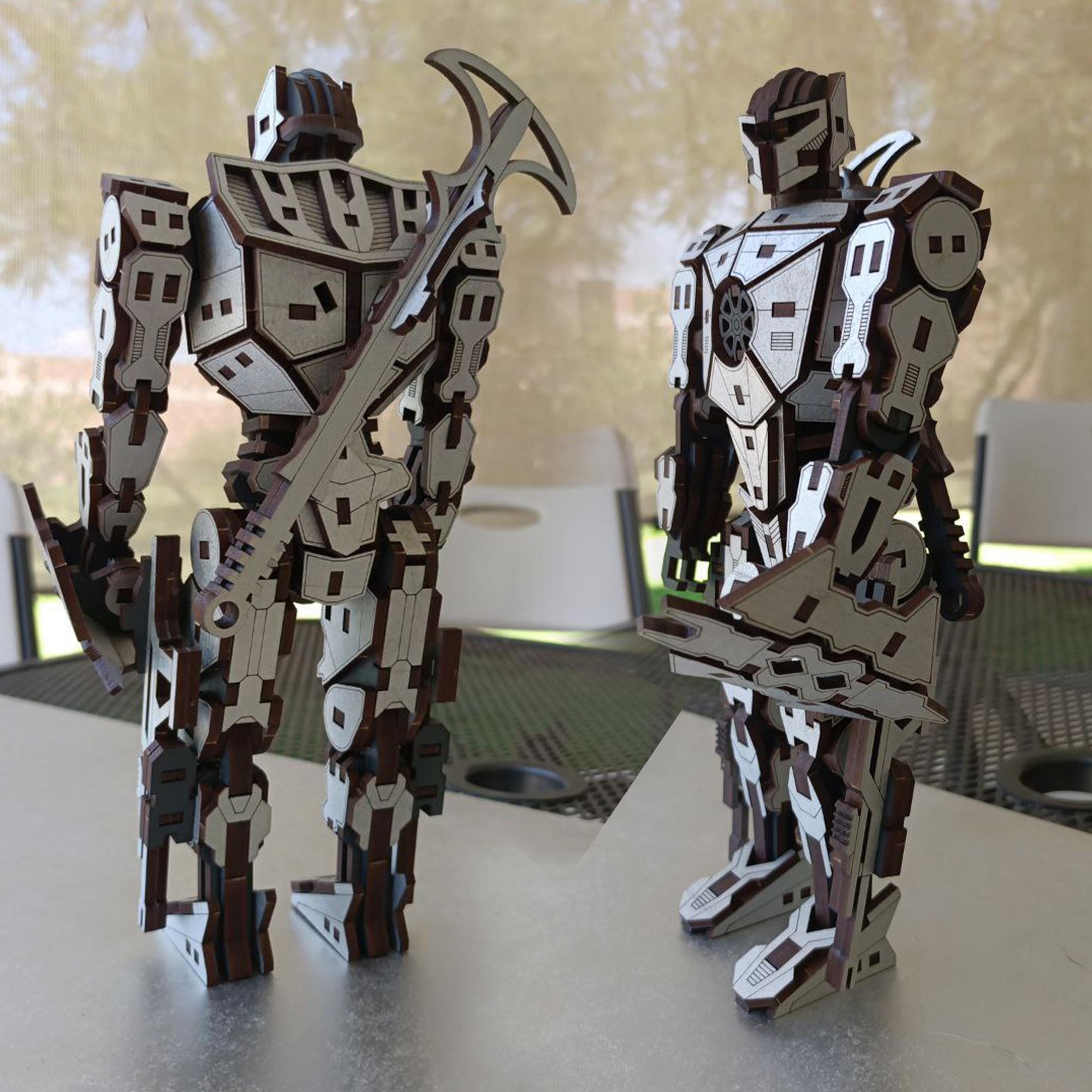

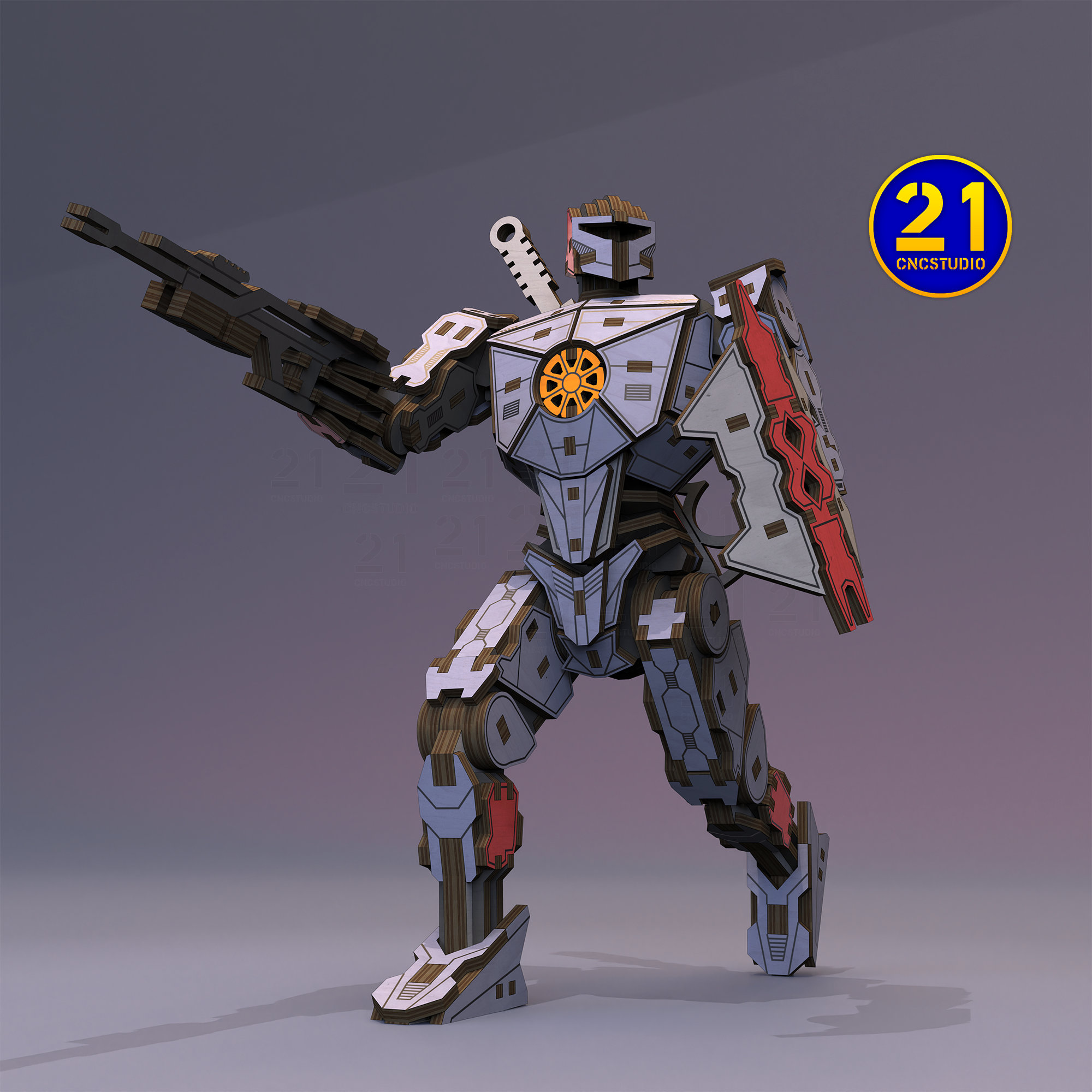

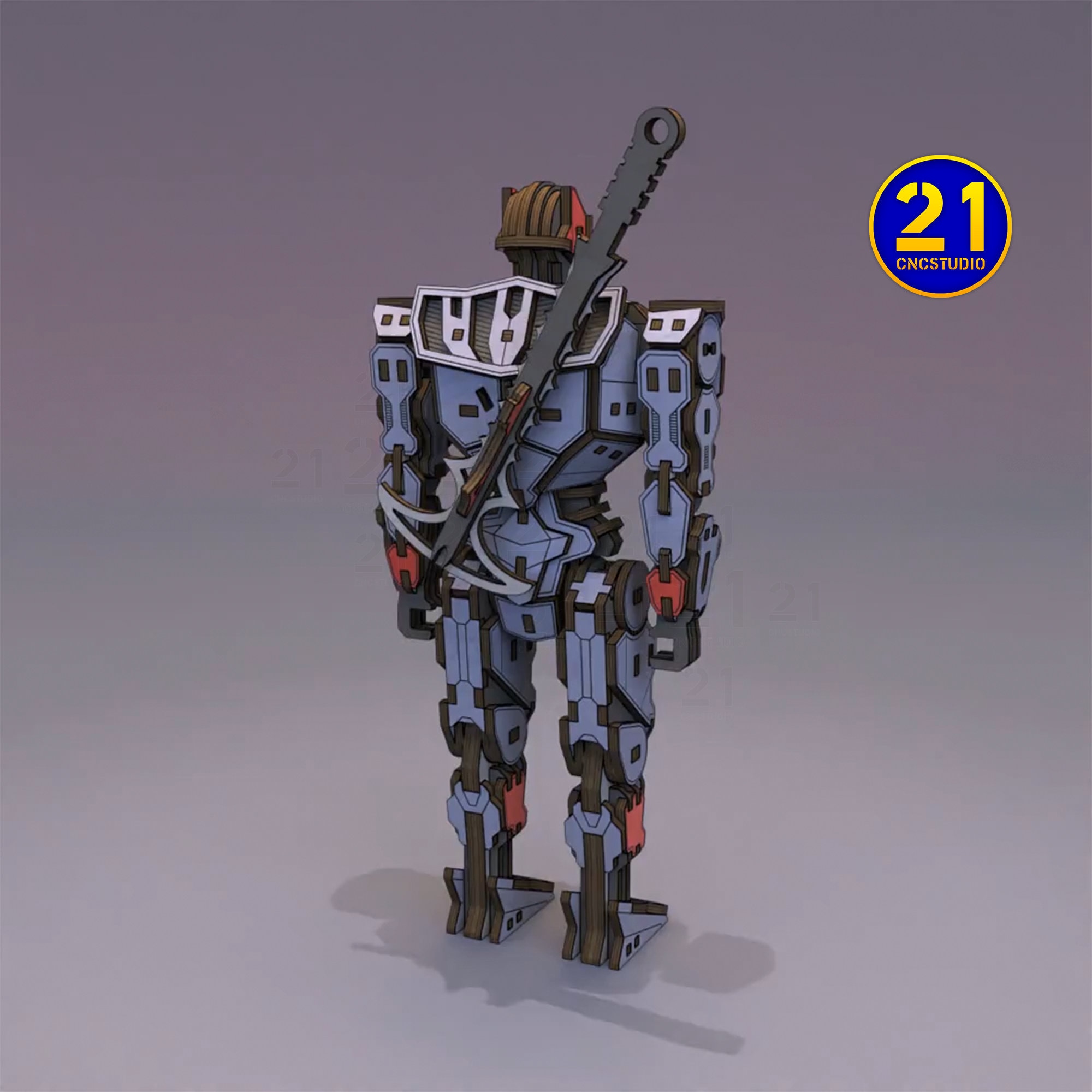

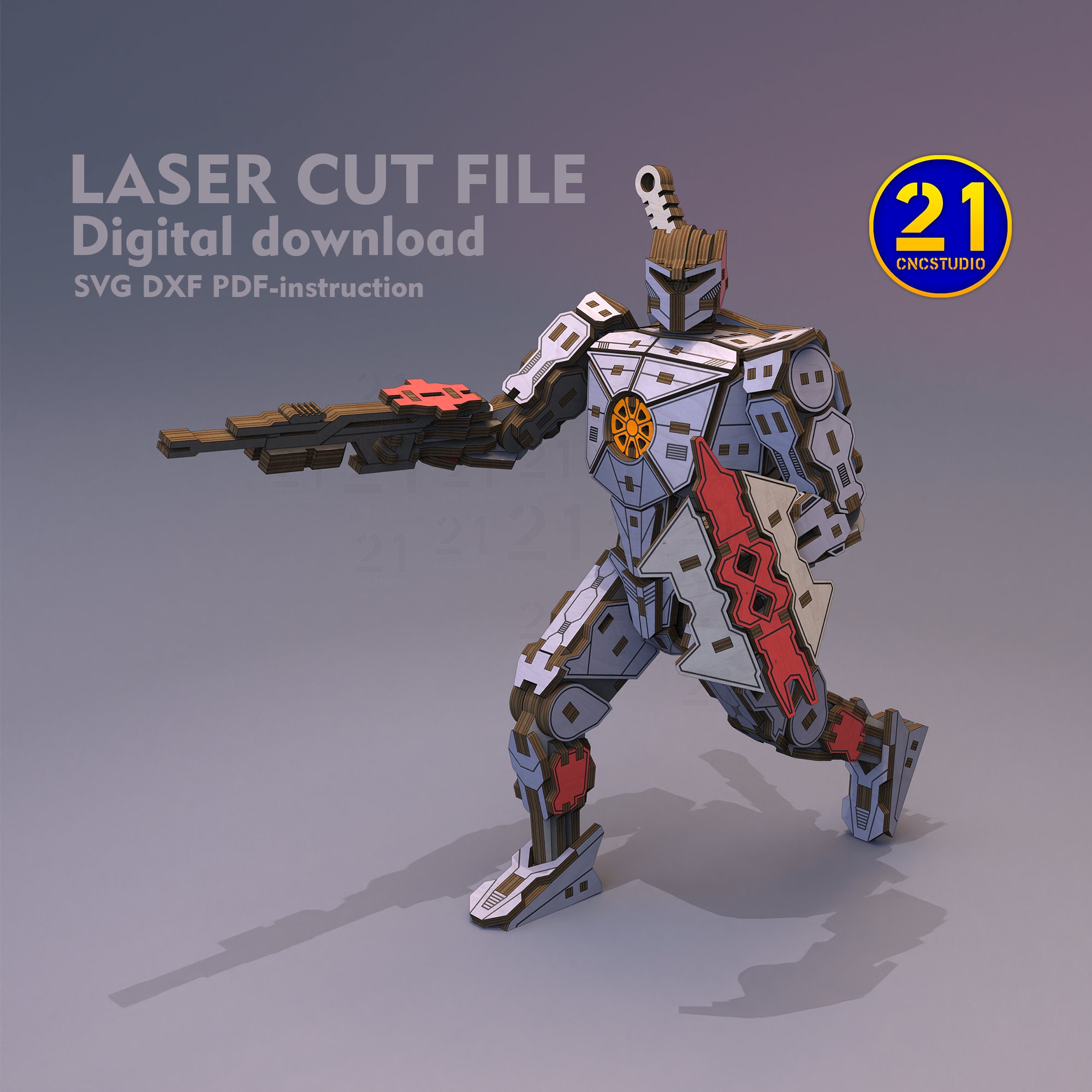

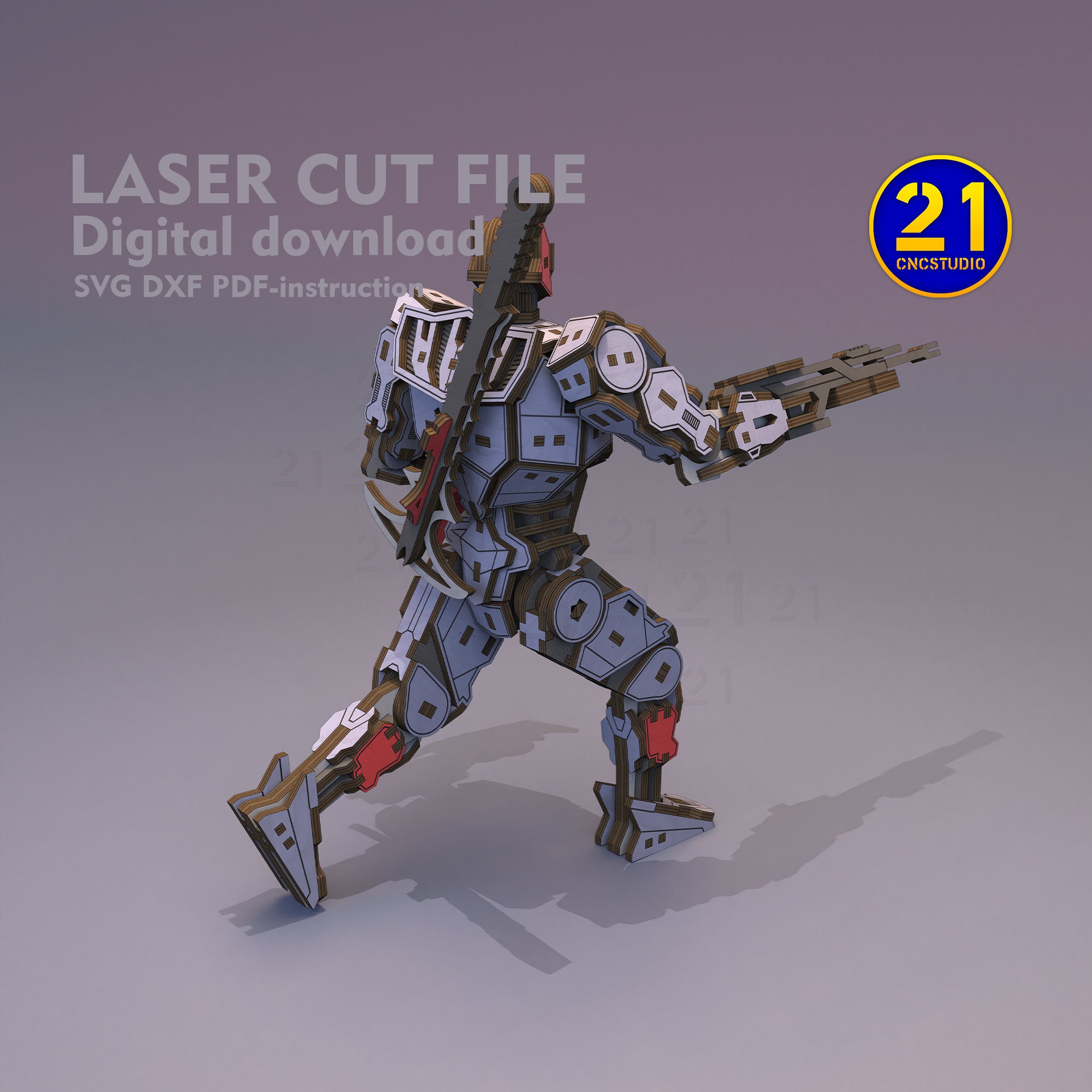

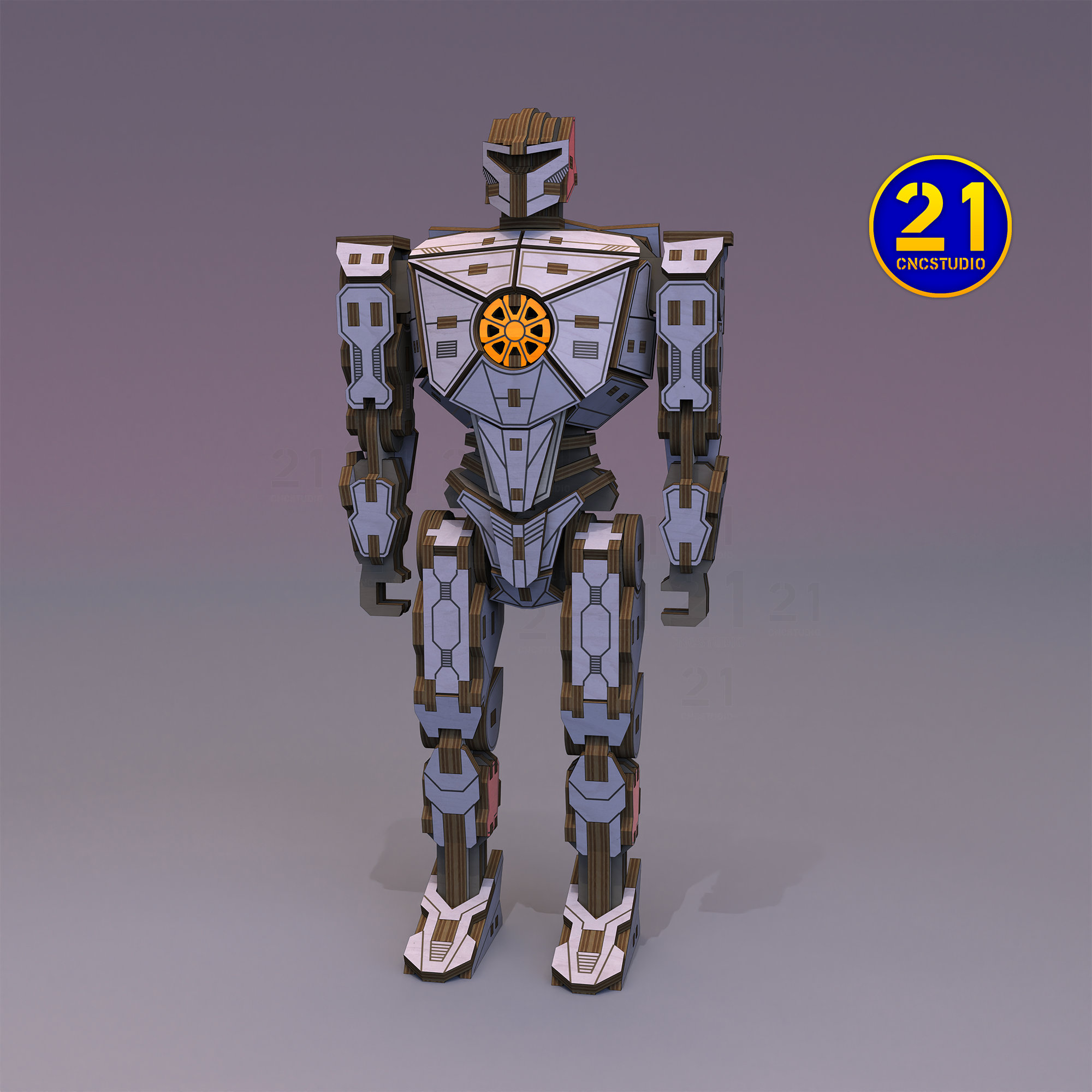

Unleash your creativity and bring this mighty Jaeger robot to life with our "Jaeger Robot - Laser Cut Model" digital file. This intricate design features movable arms, legs, and a rotating head, making it a dynamic addition to any collection. Ideal for hobbyists and laser cutting enthusiasts, this digital product provides all the files you need for a precise and enjoyable build.

Key Features:

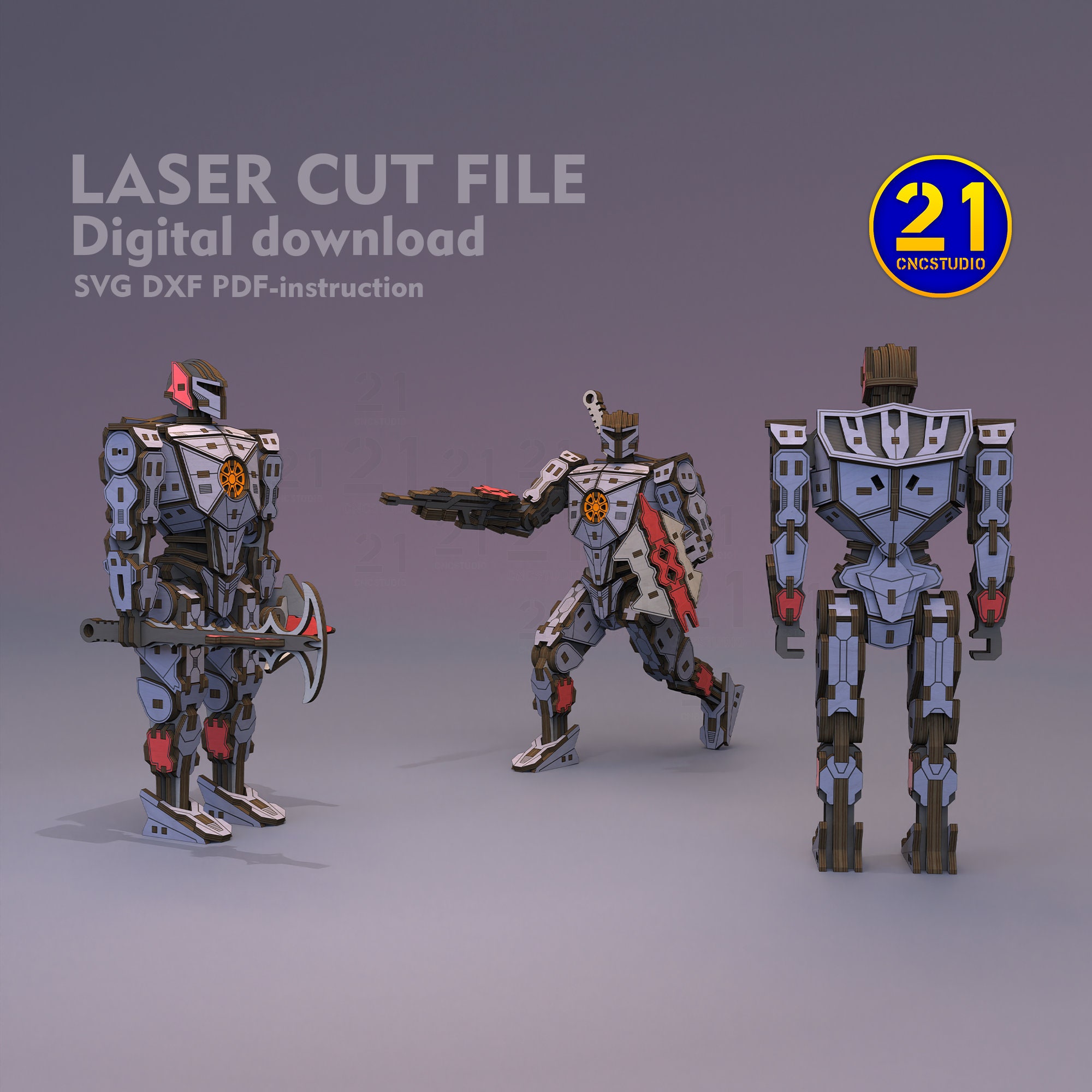

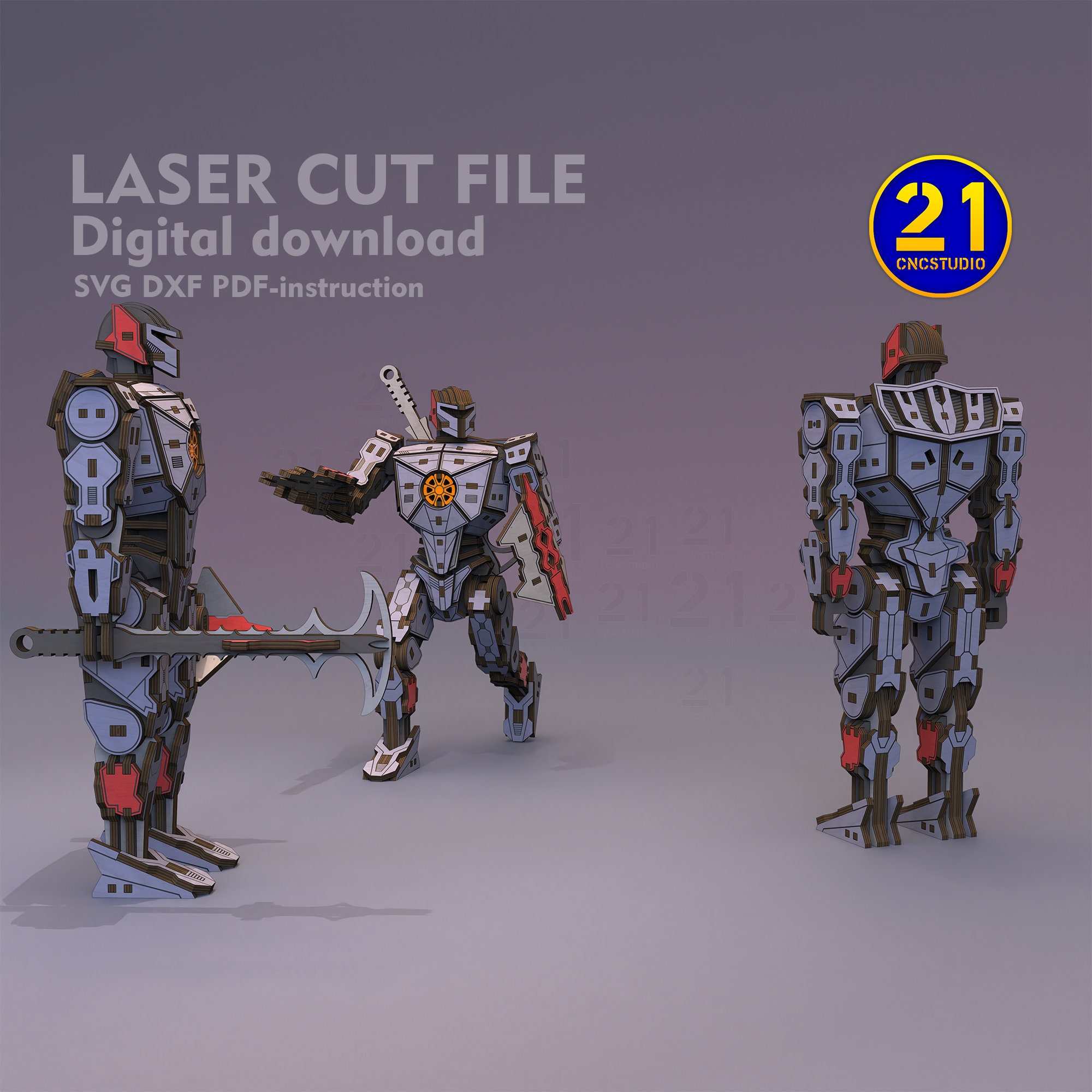

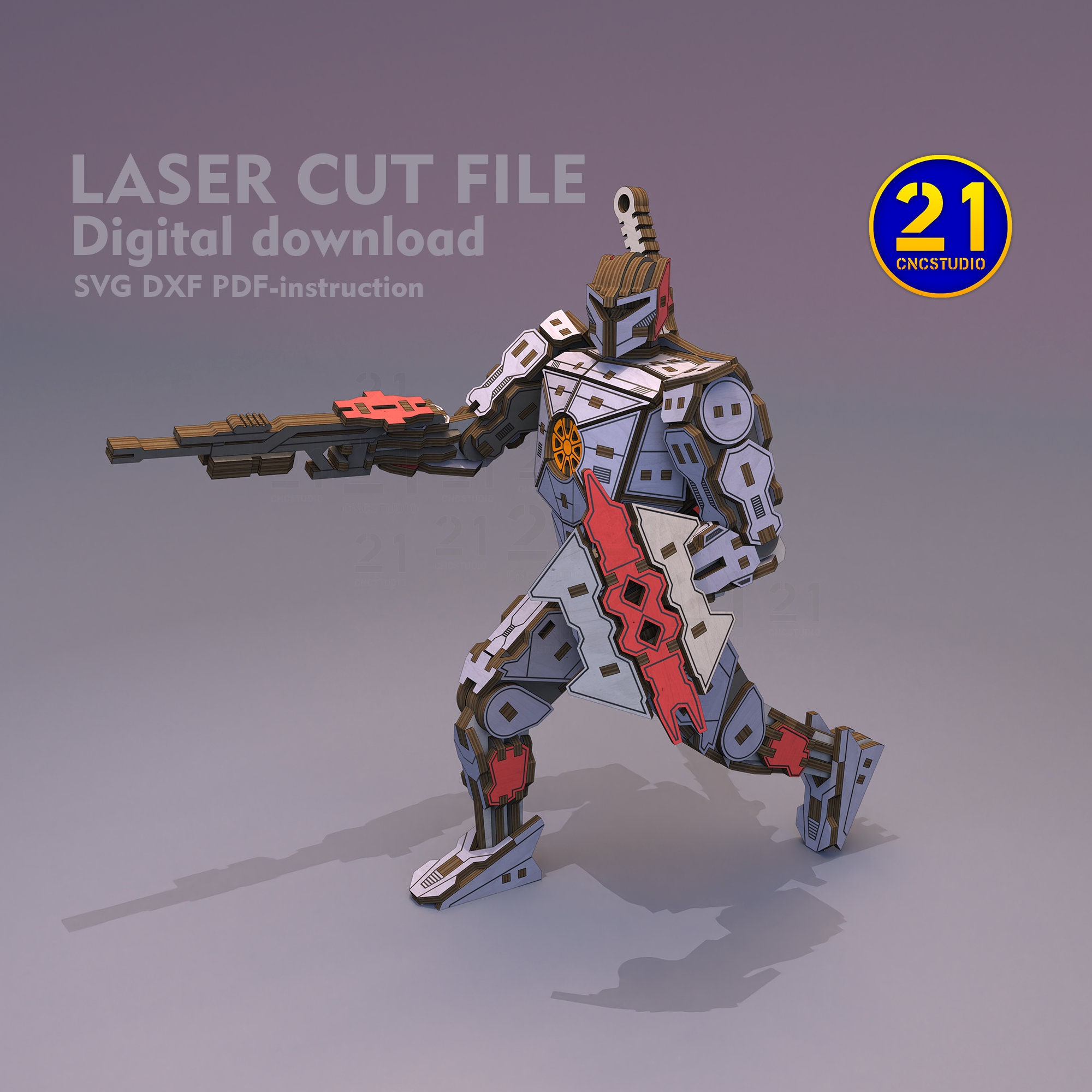

Digital Download: Includes premium SVG, DXF, and PDF instruction files.
Movable Parts: The model features movable arms, legs, and a rotating head for added realism.
Detailed Instruction: Comes with a comprehensive PDF instruction guide for easy assembly.

Specifications:

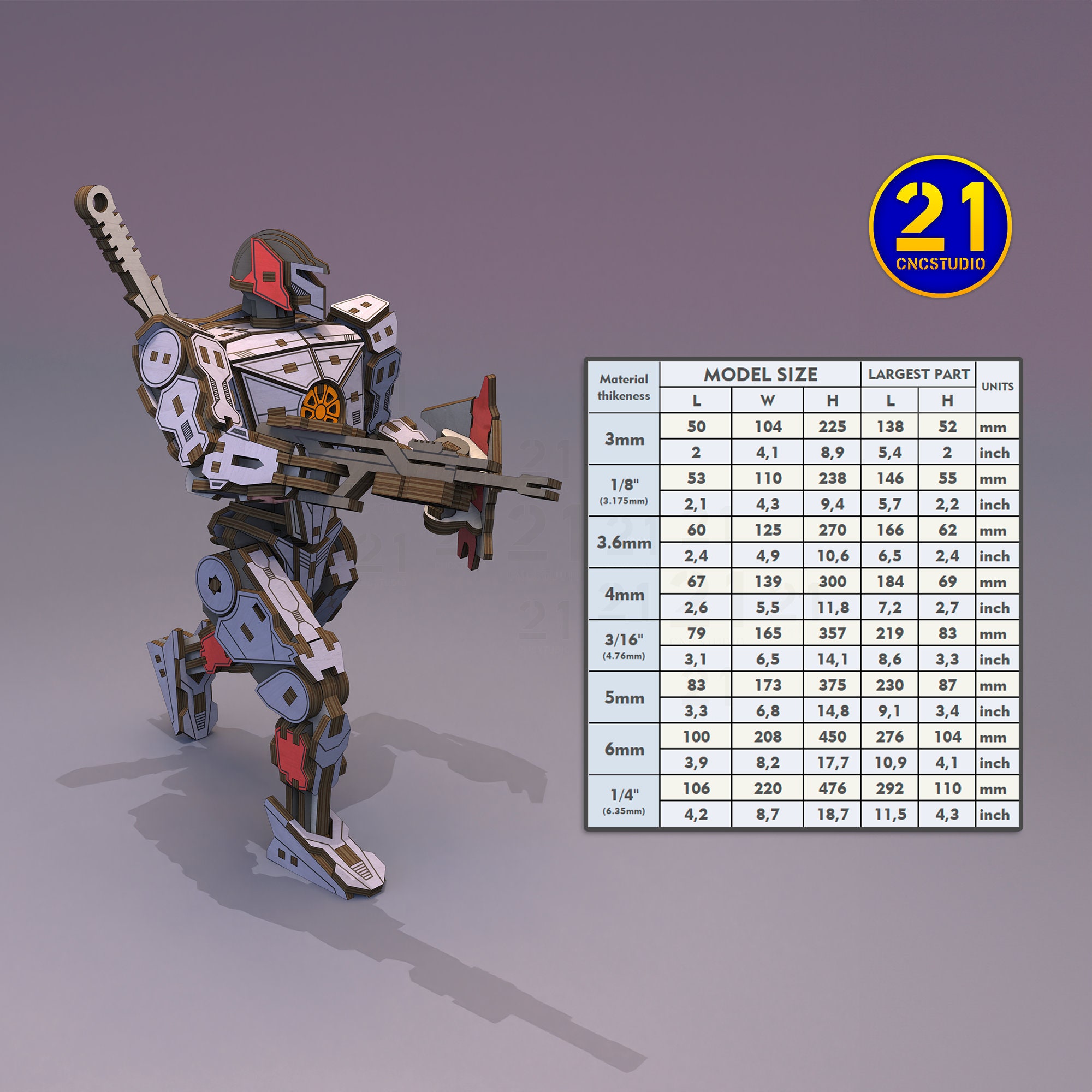

Size:
3mm Thickness: Height: 225mm, Width: 105mm, Length: 50mm.
1/8" (3.175mm) Thickness: Height: 238mm, Width: 111mm, Length: 52.9mm.
3.6mm Thickness: Height: 270mm, Width: 126mm, Length: 60mm.
4mm Thickness: Height: 300mm, Width: 140mm, Length: 66.7mm.
3/16" (4.76mm) Thickness: Height: 357mm, Width: 167mm, Length: 80mm.
5mm Thickness: Height: 375mm, Width: 175mm, Length: 83.3mm.
6mm Thickness: Height: 450mm, Width: 210mm, Length: 100mm.
1/4" (6.35mm) Thickness: Height: 475mm, Width: 221mm, Length: 105.8mm.

Material Thickness: Compatible with plywood thicknesses of 3mm, 1/8", 3.6mm, 4mm, 3/16", 5mm, 6mm, and 1/4".

Customization: Files can be adapted for various sizes and materials.If you need files for a different material thickness or in another format, please feel free to contact me for assistance.
Included in Your Download:
Multiple File Formats: SVG, DXF files for different material thicknesses.
Detailed PDF Instruction: Step-by-step guide to ensure a smooth assembly process.

Please Note:
Digital Product: This is a digital download only. No physical items will be shipped.
Personal Use Only: Unauthorized distribution or commercial use without consent is not permitted.
Post-Purchase Access: Files will be available for download in your Etsy account's purchases section after payment is confirmed.

How to Assemble:
Preparation: Ensure your laser cutting machine is calibrated for the material thickness you are using.
For tight assembly of parts and good friction in the hinge elements, you must have the KERF settings in your laser software. You can find information about this on the Internet or in our Facebook group.
Color-Coded Guide: Use the color-coded PDF guide for convenient painting and assembly.
Test Cuts: Perform test cuts to ensure correct power settings before proceeding with the entire model.

Copyright Notice:
This file is intended for personal use only. Unauthorized distribution or commercial use without consent is strictly prohibited. For any inquiries or assistance with the files, please contact us on Etsy or Facebook.
